Automatic flexible tube cutting machine

Suitable for tubes less than 22mm diameter
Cut length: 1-9999mm

Usage:
Tube cutting machine is suitable for various tube, such as pvc tube, rubber tube, heat shrink tube, fiberglass tube, teflon tube,silicone tube. Also it can cut velcro, elastic, ribbon, belt, strap, cable, ribbon cable, copper wire, copper foil, paper, pvc sleeve, heat shrink sleeve, etc.

If you are interested in our machine, please tell us what you want to cut and its size. We will select a suitable model for you.


Features
-High speed: It can cut 100~120 cuts per minute. (50mm long)
-Accuracy: Cut-length is accurate controlled by stepping motors
-Cutting type: Cutting is neat due to using a cold cutter which is durable.
-Automatic operation: It works automatically only by setting length and quantity
-Automatic stopper: It stops automatically if materials run out during operation
-Memory: Set-length, set-quantity & set-speed are not erased even if power off & on
-Application: hook and loop velcro,elastic, nylon/plastic zipper, ribbon, webbing,Nickel strip, strap, tape,etc
-Multi-functional usage: Cut shrink tubes, pvc tubes, fiber glass tubes,hook&loop Velcro, elastic, zipper, tape, flat cable, copper wire. Paper, plastic sheet, etc

Parameters

Electric Power	AC 220V/110V  50HZ/60HZ
Electric Load	500W
Cut Length	from 0.1 MM to 9999.9MM
Cut Width	from 0.1 MM to 120MM
Cut Speed	It depend on the cut length. 100-120cuts/minute(50mm length)
Net Weight	31KG
Outer size	L360*W320*H350 mm
Packaging detail	Standard Export Carton Box .
Language	English panel,software, user manual
Suitable tube dia	Max 22mm
Certificate	CE

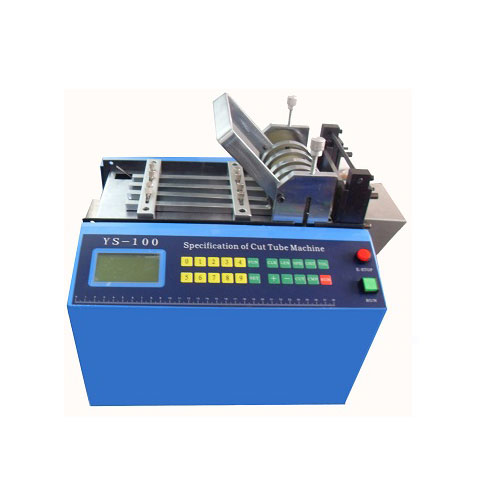

Pictures of tube cutting machine




English panel
