Automatic Plastic/Rubber Tube Cutting Machine YS-100

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: YS-100

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

Automatic plastic/rubber tube cutting machine
Application :

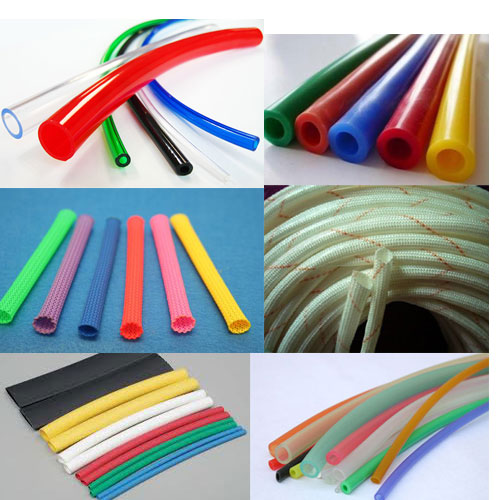

 The machine is suitable for cutting plastic tube, pvc tube, heat shrink tube, rubber tube,etc.

Cut tubes: plastic pvc/rubber tube, silicone tube, heat shrink tubes, fiberglass tubes, insulation tube, teflon tubes, and other soft tubes.

Cut Cable/wire: Flat cable, ribbon cable, copper wire, Nickel wire, aluminum wire, etc


Cut Tape/belt: nickel strip, velcro, cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, etc


Cut Sheet: battory separator, Nickel sheet, diffusersheet, plastic/rubber sheet, pvc sheet,etc


Cut Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper,etc




Electric Power

AC 220V/110V  50HZ/60HZ

Electric Load

250W & 500W

Cut Length

from 0.1 MM to 9999.9MM

Cut Width

from 0.1 MM to 100MM

Cut Speed

It depend on the cut length, 100-120cuts/minute(50mm length)

Net Weight


Outer size

L360*W320*H350 mm

Packaging detail

Standard Export Carton Box .

Suitable tube dia Max 12mm
Certificate CE





-High speed: It can cut 100~120 cuts per minute. (50mm long)
-Accuracy: Cut-length is accurate controlled by stepping motors
-Cutting type: Cutting is neat due to using a cold cutter which is durable.
-Automatic operation: It works automatically only by setting length and quantity
-Automatic stopper: It stops automatically if materials run out during operation
-Memory: Set-length, set-quantity & set-speed are not erased even if power off & on
-Application: hook and loop velcro,elastic, nylon/plastic zipper, ribbon, webbing,Nickel strip, strap, tape,etc
-Multi-functional usage: Cut shrink tubes, pvc tubes, fiber glass tubes,hook&loop Velcro, elastic, zipper, tape, flat cable, copper wire. Paper, plastic sheet, etc

Tube cutting machine is suitable for cutting various soft tubes.

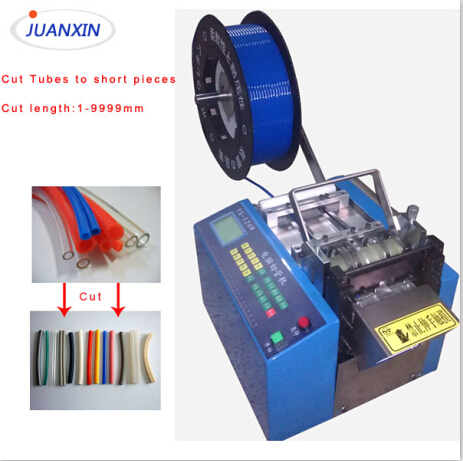

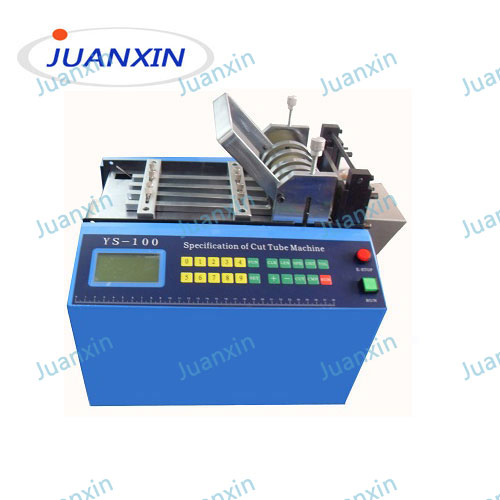

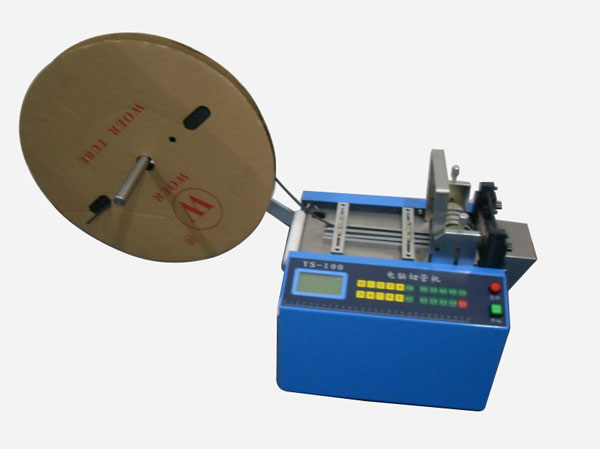

Pictures of tube cutting machine

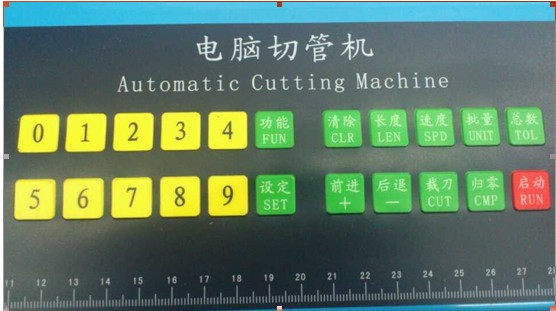

English panel and operation software

Packaged by carton box or wooden case
