JX-919 Hot&Cold Webbing Tape Cutting Machine

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: JX-919

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description
JX-919 Hot&Cold Webbing Tape Cutting Machine


Model: JX-919 Hot and Cold Blade webbing tape cutting machine
Max tape width: 110mm
Cut length:1-9999mm
Power: Motor 60W  Heater:600W
Max temperature:500 degrees, adjustable
Package size:L380xW320xH300mm(25KG)
Tape cutting speed:100-120 cuts/minute(50mm)
Blade type: Hot and Cold Blade
Usage:Hot cut and sealing for nylong/polyester/braided tape

Specification
-High speed: It can cut 100~120 cuts per minute. (50mm long)
-Accuracy: Cut-length is accurate controlled by stepping motors
-Cutting type: Cutting is neat due to using a cold cutter which is durable.
-Automatic operation: It works automatically only by setting length and quantity
-Automatic stopper: It stops automatically if materials run out during operation
-Memory: Set-length, set-quantity & set-speed are not erased even if power off & on
-Application: For kinds of nylon/polyester/braide tape and webbing, which needs hot blade cut to seal the end and to avoid the end fraying.

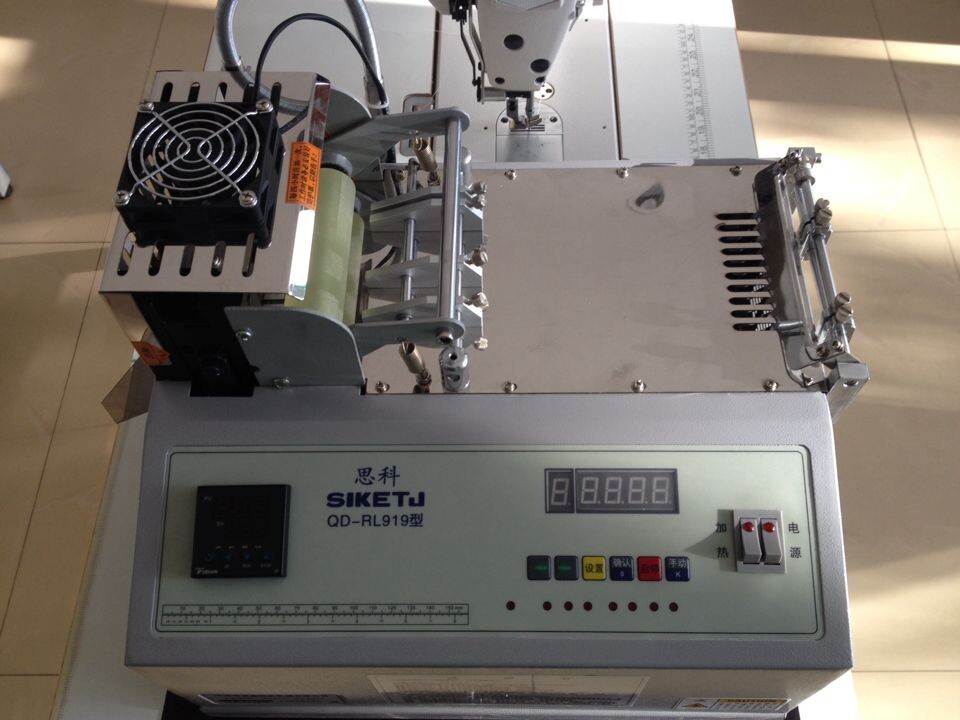

Pictures of JX-919 hot and cold cut machine
