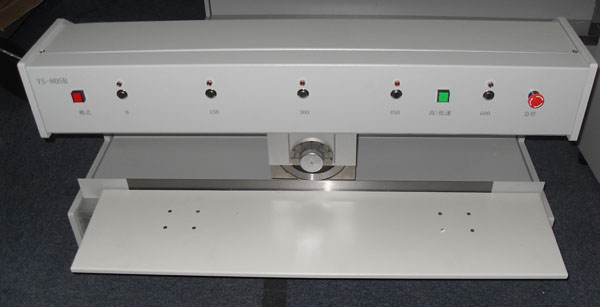

600mm V-scored PCB Separator/PCB Cutter

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: YS-805B

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description
600mm V-scored PCB Separator/PCB Cutter

Usage

The machine is used to v-cut pcb board to samell pcb.

According to the length of your pcb, we have different models for you. Such as YS-805 for pcb less than 400mm length, and JX-F300 for any length pcb cutting.

Available PCB thickness: from 0.2mm to 3.2 mm

Available V-cut thickness: from 0.2mm to 2.0mm



If you are interested in our machine, please tell us the length of your pcb, we will recommmend a suitable machine for you.

Parameters

Model

YS-805B

Cutting Length

0-600mm(For longer pcb, contact me)

Outer dimension

 L940xW550XH460mm

PCb length

Different models for different length of pcb cutting



Electric Load

AC220V 50Hz & AC110V/60HZ

Electric Power

250W

Suitabe for

V-Groove PCB Board/Aluminum PCB

Package

Wooden Case

Weight

Approx.70KG



Features

1, Controlled by microcomputer program, it can cut board accurately with no error.

2, Adjustable blade moving speed: 300mm/s or 500mm/s. As per customers' need, certain speed can be set.

3, Upper blade can be adjustable between 0 and 2mm to meet different thickness of PCB and V-cut.

4, Operation platform can be adjustable higher and lower between 0 and 50mm.

5, As per your pcb length, we have different models for you. So any length pcb is available.

6. Available board thickness: 0-3.2mm, V-groove thickness:0-2mm

7. Pre-set the cutting start and end point to well control the cutting length.

8. The blades are sharp and endurable. And they can be sharpened between 7 and 10 times.

9. Minimize the shearing stress to avoid micro-cracks of the solder joints
