Long LED strip PCB Cutting Machine

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number:

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

Long LED Strip PCB Cutting Machine

Usage: Suitable for cutting unlimited length of v-cut PCB, aluminum PCB, FR4 PCB, PCBA, etc.

Machine Parameters
Maximum length of the board: unlimited
Thickness:0.6~3mm
Feed pcb Speed:80, 120, 200, 300mm/s
Material of blade :SKH7 HSS
Power supply: 220V/50HZ 40W
Operating temperature: 10~35 degrees
Can cut LED panel, fiberboard, aluminum board , FR4
Size: 540mm(L)*280mm(W)*240mm(H)
Weight: 40kg
Storage temperature: -20~50 degrees

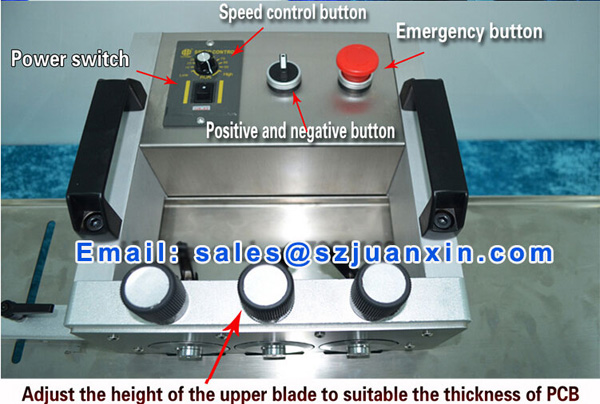

Features
1. For cutting any length v cut pcb, aluminum pcb, fiber board, FR4, LED pcb, pcba.
2. Three pair of blades can guarantee the aluminum plate without deformation and damage after cutting.
3.Due to three times cutting, cutting process is smooth and can locate v cut very well to avoid v-cut jumping out.
4.High quality blade and small cutting force ensures long life of blade.
5.Blades are calibrated by Excitation double-frequency laser interference measurement instrument, which can ensure rear and front blades cut same places of the v cut. Perfect cutting effect.

Advantages

1. It is quite suitable for aluminum board.
 2. It can cut the board without warping.
 3. The stress is very low when cut board.

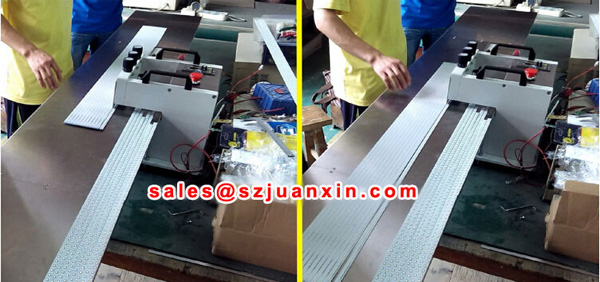

2400mm long platform
