Automatic Nickel Tabs&Shrink Tubes&Wires Cutting Mac

Product Details:

Place of Origin:	China
Brand Name:	JUANXIN
Certification:	CE
Model Number:	YS-100

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	wooden case or carton box
Delivery Time:	3-5 days
Payment Terms:	FOB/EXW/CIF
Supply Ability:	1000 set /week

Detailed Product Description

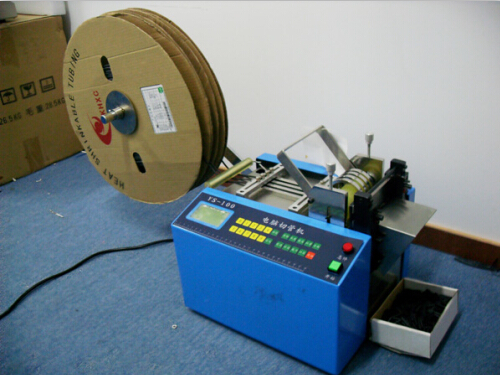

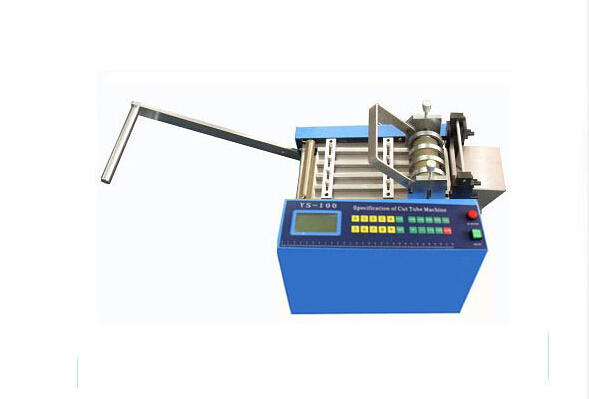

Automatic Cutter for Nickel tabs&shrink tubes cutting Machine

Machine for cutting Battery wire/nickel strip/shrink tubes to certain length.

Cut length: 1-9999MM

Product Description

Usage:

The machine is used for cutting Nickel strips/tabs, wires and shrink tubes for battery. Also it can cut solar cell pv ribbon, pvc sleeves, rubber tube, pvc tubes, plastic film, velcro,elastic, strap,etc.

If you are interested in our machine, please tell us what you want to cut and its size. We will select a suitable machine for you.

Features

-High speed: It can cut 100~120 cuts per minute. (50mm long)
-Accuracy: Cut-length is accurate controlled by stepping motors
-Cutting type: Cutting is neat due to using a cold cutter which is durable.
-Automatic operation: It works automatically only by setting length and quantity
-Automatic stopper: It stops automatically if materials run out during operation
-Memory: Set-length, set-quantity & set-speed are not erased even if power off & on
-Application: Nylon fiber ribbon, rope, horse reed belt, leather, nylon zipper, belt bags etc.
-Multi-functional usage: Cut shrink tubes, pvc tubes, fiber glass tubes, Velcro, elastic, zipper, tape, flat cable, copper wire. Paper, plastic sheet, etc

Parametes

Model : YS-100

Products Name : Automatic Nickel Tabs and shrink tubes cutting machine

Power Supply : 220V/110V, 50/60Hz (Convertible)

Power :500W

Cutting Length : 1-9999.9MM

Cutting Width : 0.1-100MM

Net Weight : 28KG

Size : L360*W300*H350MM

Package: Carton Box with foam

Language: English
