Automatic loose radial lead cutting/trimmer machine

Product Details:

Place of Origin: China
Brand Name: JUANXIN
Certification: CE
Model Number: JX-901A

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: wooden case or carton box
Delivery Time: 3-5 days
Payment Terms: FOB/EXW/CIF
Supply Ability: 1000 set /week
Detailed Product Description

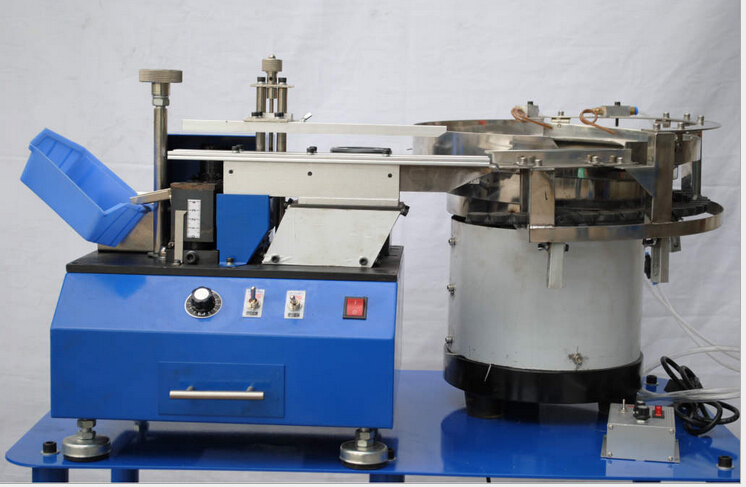

Automatic loose radial lead cutting/trimmer machine



Feature

1. Machine is for cutting radial  components lead foot ,such as bulk capacitor, inductor,LED and etc.

2. Small volume, easy to hand operation can be installed in the desktop use, without being limited by the space;

3. Its cutting way is very special. Made of steel materials imported from Japan, its cutters are durable and easy to adjust.
4. It works accurately with a minimum of 3mm. (If you want the machine more accurate, we can customize it for you.)
5.Electric-driven as well as pneumatic-driven, it feeds stably and quickly.
6.The lead cutting machine and the feeding tray can work either jointly or individually.
7.The trolley makes machine move easily

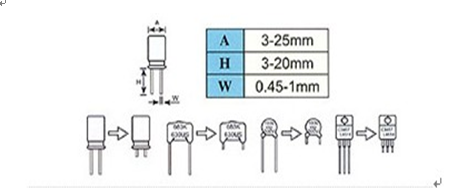

8. Feeding tray is for 3-10MM  electrolytic capacitor, and 3-5mm LED. And body length should be less than 16MM. Without this range, components can be feed manually.

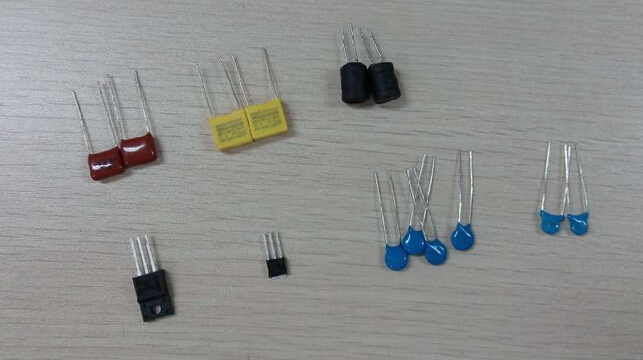

Available Components

Suitable for radial components, such as Capacitor, LED, triode, inductor,etc



Machine parts

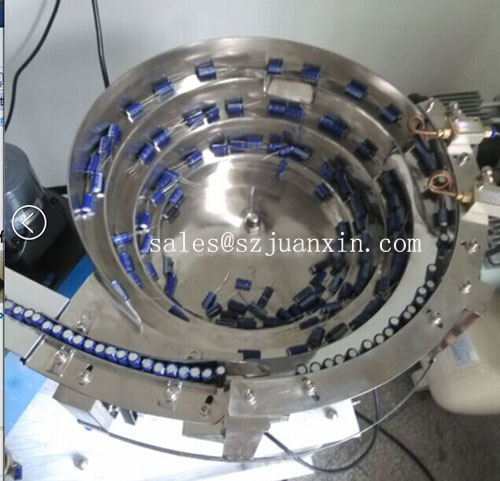

Automatic feeding vibration tray


After- cut
